Copper Nickel Fasteners Manufacturer, ASTM B151 Copper Nickel Fasteners, ASTM B152 UNS C71500 70/30 Copper Nickel Fasteners, Cu-Ni UNS C70600 90/10 Copper Nickel Fasteners, High Tensile Copper Nickel Fasteners, Industrial Copper Nickel Fasteners, Copper Nickel Oval Neck Track Bolts, Copper Nickel Bent Bolts, Copper Nickel Hex Cap Screws, Copper Nickel Heavy Hex Screws Manufacturers in India. ANSI/ASME B18.2.1,B18.2.2,B18.2.3 Copper Nickel Fasteners.

Copper Nickel Fasteners Manufacturer, Copper Nickel Fasteners Suppliers, Copper Nickel 70/30 Fasteners, Copper Nickel 90/10 Fasteners, Copper Nickel Nuts, Copper Nickel Bolts, Copper Nickel Screws, Copper Nickel Washers, Copper Nickel Bolts and Screws, Copper Nickel Heavy Hex Bolts Suppliers in Nigeria, Australia, Egypt, Iran , Iraq.

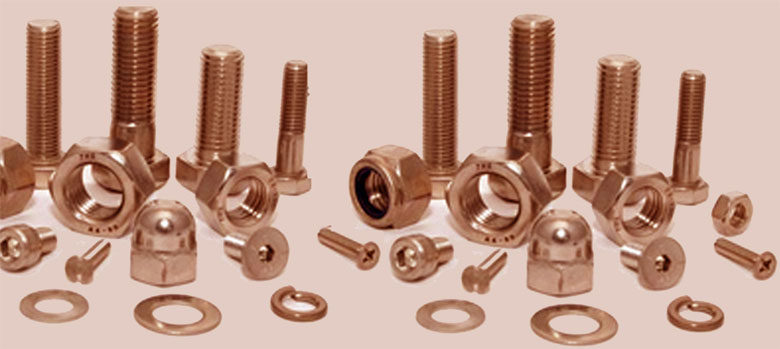

MICROTECH STAINLESS STEEL CO. is specialized in manufacturing and supplying of Copper Nickel Fasteners , Pipe Fitting, Forged Fittings, Butt weld fittings, Flanges in Stainless steel, alloy Steel & carbon Steel since 1991, we manufacture wide range of Copper Nickel Fasteners such as Copper Nickel Nuts, Copper Nickel Bolts, Copper Nickel screws, Copper Nickel washers, Copper Nickel bolts and screws, Copper Nickel heavy hex bolts, Copper Nickel finished hex bolts, Copper Nickel oval neck track bolts, Copper Nickel bent bolts, Copper Nickel hex cap screws, Copper Nickel heavy hex screws, Copper Nickel 12-point screws, Copper Nickel socket head cap screws etc. as per International standard like ASME/ASTM/API, we are supplying & exporting Copper Nickel Fasteners in seamless & welded both forms to more than 60 countries for over 2 decades, we have our dealers & distributors in Nigeria, Australia, Malaysia, Egypt, South Africa, Tanzania, Kenya, Mozambique, Angola, Gabon Germany, Turkey, France, United Kingdom, Italy, Netherlands, Iran , Iraq , Saudi Arabia, United Arab Emirates , Iisrael, Jordan, Oman, Kuwait, Qatar, Bahrain, Bangladesh, China, Indonesia, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand, Vietnam, Brazil, Colombia, Argentina & United States of America, MICROTECH STAINLESS STEEL CO. is the only company in INDIA which is approved Manufacturer & supplier of Copper Nickel Fasteners in 300 top companies worldwide. Few of them are ORPIC, NIORDC, Saudi Aramco, SABIC, PIDMCO, GASCO, KNPC, Indian Oil, BPCL, HPCL, NTPC, BARC & Indian Navy, MICROTECH STAINLESS STEEL CO. is ISO 9001:2008, ISO 14001, OHSAS 18001 Certified Company since 2010 .

MICROTECH STAINLESS STEEL CO. is manufacturing & exporting pipe flange from 1/2" thru 200", 150 lbs to 3000 lbs including Copper Nickel Fasteners , Stainless Steel Fasteners and Carbon Steel Fasteners according to ANSI , API , MSS , DIN for the world market. We are experienced & specialized in manufacturing special ring Fasteners and other forgings as per drawing provided by our clients.

We supply ASME Code and Non Code Industrial Fasteners for the Petrochemical, Chemical & Waterworks industries. check our price before buying Fasteners in Copper Nickel Fasteners , Stainless Steel Fasteners , Alloy Steel Fasteners .

Copper Nickel Fasteners are available in two variations viz 70-30 (C70600) and 90-10( C71500 ) .C70600 Copper nickel is stronger as of the two with a yield strength of 150 Mpa in annealed condition as compared to 120 Mpa of C75100 Copper Nickel. Especially in case of cupro nickel 70-30 bolts as compared to copper nickel 70-10 bolts where tensile is the deciding factor due to high level of corrosion in marine applications.

CuproNickel 70-30 is a well-known alloy as compared to cupro nickel 90-10, with higher additions of nickel as compared to the lower alloy.

Copper Nickel Fasteners / Cupro Nickel Fasteners Specification

Material	Size	Length	Specification
Copper Nickel Fasteners	M10 to M100	Upto 5 Meters	IS BS ASTM

Material:	Copper Nickel Fasteners
Standard :	ASTM / ASME SB 151, SB 152
Grades	UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)
Type	Hot Forged and Cold Forged
Type of Fasteners:	Bolts : Bolts stud bolts, hex head bolts, socket hexagon head screw anchor bolts, u-bolts, J bolts, mushroom head square neck bolts, t- head bolts, wing screw, eye bolt, eye bolt, foundation bolts and structural bolts Washer : Plain washer , plain big & small OD washer , spring lock washer , spring washer heavy duty , tooth washer , star washer , tab washer with one & two tab Nuts : Hexagon nuts, hexagon coupling nuts, hexagon thin nut, square nut, hexagon castle nuts, self locking nut, hexagon domed cap nuts Screw : Pan head slotted screws, cheese head slotted screws, countersunk head slotted screws, countersunk raised head slotted screws, pan phillipse head screw, countersunk Phillipse raised head screws, slotted cheese trim head machine screws, socket head allen cap screws, allen countersunk socket head cap screws, socket head shoulder screws, socket head cap screw low head, hexagon socket set screw with flat point, hexagon socket set screws with cone point, hexagon socket set screw with dog point, hexagon socket set screws with dog point, hexagon socket set screws with cup point, imprial socket cap screws. Other : Threaded rod, as per drawing and customers spec. coating, hot dipped galvanizing, phosphate, Teflon, xylon, zinc, cadmium.
In Form of:	Hex, Square, Round , Threading as per Gauge Etc.

Copper Nickel Cu-Ni 90/10 (C70600) Fasteners

Grade	:	Cu-Ni 90/10 (C70600), UNS C71640
Range	:	M10 TO M100 , LENGTH UPTO 5 METERS

Copper Nickel 70/30 (C71500) Fasteners / Cupro Nickel 70/30 (C71500) Fasteners

Grade	:	Cu-Ni 70/30 (C71500), UNS C71640
Range	:	M10 TO M100 , LENGTH UPTO 5 METERS

Copper-Nickel 90/10 Fasteners Dimensions / Copper-Nickel 90/10 Fasteners Dimensions

Range	1/4" NB to 4" NB in Class 2000 , 3000, 6000, 9000
Specifications	ASTM A 182 ASME SA182
Types	Socketweld,SCREWED, NPT, BSP, BSPT

Four Properties of Copper Nickel Fasteners / Cupro Nickel Fasteners

Copper Nickel fasteners / Cupro Nickel Fasteners use Copper Nickel as raw materials. Copper Nickel fasteners has four properties.

1. High temperature resistance. For high hardness, the fasteners has strong oxidation resistance. It cannot work under high temperature and cannot be interfered by high temperature. If the fasteners is passivated after being made out, the temperature resistance will be better.

2. Physical properties. Copper Nickel fasteners has higher specific resistance. The specific resistance of Copper Nickel is higher than that of carbon steel by five times. Standard parts have an expansion factor. Through experiment, if the temperature is higher, the expansion factor of Copper Nickel fasteners will be improved definitely.

3. Stress capacity. Copper Nickel fasteners can endure moderate stress. Although it cannot be compared favorably with high strength bolt, the fasteners can still meet the common requirements.

4. Mechanical properties. High rust resistance and corrosion resistance have close relationship with the features of Copper Nickel. For standard parts developing constantly, mechanical properties of Copper Nickel fasteners will be enhanced further.

Chemical Properties - Copper Nickel 70/30 (C71500) Fasteners

Grade	Cu	Pb	Mn	Fe	Zn	Ni
Cu - Ni 70/30	65.0 min	.05 max	1.0 max	0.4-1.0	1 max	29 - 33

Mechanical Properties - Copper Nickel 70/30 (C71500) Fasteners

Density	Melting Point-Liquidus	Min.Tensile (KSI)	Min.Yield (KSI)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Chemical Properties - Copper Nickel 90/10 (C70600) Fasteners

Grade	Cu	Pb	Mn	Fe	Zn	Ni
Cu - Ni 90/10	88.6 min	.05 max	1.0 max	1.8 max	1 max	9-11 max

Mechanical Properties - Copper Nickel 90/10 (C70600) Fasteners

Density	Melting Point-Liquidus	Min.Tensile (KSI)	Min.Yield (KSI)	Elongation
0.323 lb/in3 at 68 F	2100 F	38	15	30 %

Copper Nickel Fasteners Useful Info

Copper Alloys - Copper Nickel Alloys Fasteners Properties

Property

Minimum Value (S.I.)

Maximum Value (S.I.)

Units (S.I.)

Minimum Value (Imp.)

Maximum Value (Imp.)

Units (Imp.)

Environmental Properties

Resistance Factors
1=Poor 5=Excellent
Flammability	5
Fresh Water	5
Organic Solvents	5
Oxidation at 500C	3
Sea Water	5
Strong Acid	2
Strong Alkalis	5
UV	5
Wear	5
Weak Acid	4
Weak Alkalis	5

B7	Alloy steel, AISI 4140/4142 quenched and tempered
B16	A heat-treated chromium-molybdenum-vanadium steel for high-pressure, high-temperature service.

Equivalent Designation - Copper Nickel Fasteners

Copper Nickel Alloys Fasteners are well known worldwide with different trade names and unique numbers. Following chart shows the exact equivalent designations corresponding to the cross reference of copper nickel alloys.

Alloy	UNS No.	British Standard	En name	Werkstoff No.
CuNi 70/30	C71500	2871	CuNi30Fe	2.0882
CuNi 90/10	C70600	2871	CuNi10Fe	2.0872

Copper Nickel 90-10 Properties

Cupro nickel 90-10 consists of 90% copper and 10% nickel , which is less durable as compared to 70-30 alloys.

Copper Nickel 90-10	Cu	Fe	Pb	Mn	Ni	Zn
Min/max	Rem	1.0-1.8	0.05	1.00	9.0-11.0	1.00
Nominal	88.60	1.40	–	–	10.0	–

Alloy	Yield strength	Tensile strength	Elongation
	Min 0.2% Mpa	Min Mpa	Min %
Cupronickel 90-10	110-393	303-414	42

Alloy	Density	Elastic Modulus	Mean Coefficient of Thermal	Thermal Conductivity	Specific Heat
	(Kg/m3)	(Gpa)	Expansion(μm/m/°C)	(W/m.K)	0-100°C
Cupronickel 90-10	8.94	140	17.1	45	377

Copper Nickel 70-30 Properties

It has 70% copper and 30% nickel with a higher toughness and strength at hardened stages, Widely used due to superior properties.

Copper Nickel 70-30	Cu	Fe	Pb	Mn	Ni	Zn
Min/max	Rem	0.4-1.0	0.05	1.00	29.0-33.0	1.00
Nominal	69.50	0.50	–	–	30.0	–

Alloy	Yeild strength	Tensile strength	Elongation
Min 0.2% Mpa	Min Mpa	Min %
Cupronickel 70-30	88.0-483	372-517	45

Alloy	Density	Elastic Modulus	Mean Coefficient of Thermal	Thermal Conductivity	Melting Point
	(Kg/m3)	(Gpa)	Expansion(μm/m/°C)	(W/m.K)	(nΩ.m)
Cupronickel 70-30	8.94	117	16.2	29	1171

Copper Nickel 90/10 Nut

Size: M02 to M50

Type:  Hex Nuts,  Grds 2, 5 & 8 , Auto Lock Nuts, 2-H Heavy Hex Nuts, Coupling Nuts, Acorn Nuts, Slotted Nuts, Heavy Hex Nuts, Square Nuts, Jam Nuts, Wing Nuts, Kep Nuts, Sleeve Nuts, Miscellaneous Nuts, Nylon Insert Lock Nuts, etc.

Grade: Cupro-Nickel 90/10 UNS C70600

Copper Nickel 90/10 Bolt

Size: M02 to M33

Length: 3mm to 1000mm

Type:  Hanger Bolts, Plow Bolts, Shoulder Bolts, Flange Bolts, Draw Bolts, Toggle Bolts Scraper Blade Bolts, Stove Bolts, Tap Bolts, Elevator Bolts, Hex Bolts, Heavy Hex Bolts, Structural Bolts, Square Bolts, etc. Grade: Hastelloy C276 UNS N10276

Grade: Cupro-Nickel 90/10 UNS C70600

Copper Nickel 90/10 Screw

Size: M02 to M33

Length: 3mm to 1000mm

Type:  Cabinet Installation Screws, Cement Board Screws, Concrete Screws, Decking Screws, Dowel Screws, Drywall Screws, Floorboard Screws, Metal to Wood Screws, Machine Screws, Resistant Screws, Sheet Metal Screws, Cap Screws, Socket Cap Screw, Self Drilling Screws, etc.

Grade: Cupro-Nickel 90/10 UNS C70600

Copper Nickel 90/10 Washer

Size: M02 to M33

Type:  A-325 Flat Washers, Fender Washers, Internal Tooth Lock, External Tooth Lock, Plain Washers, Square Washers, Dome Plain Washers, Countersunk Washers, Dock Washers, Ogee Washers, Bevel Washers, Flat Washers – SAE, Flat Washers – USS, Split Lock Washers, etc.

Grade: Cupro-Nickel 90/10 UNS C70600
